In this article:

• Photoshop
• Premiere Pro
• Lightroom
• Illustrator
• After Effects
• Audition

Adobe Photoshop

How do I connect my MX Creative Console to the Photoshop plugin?

After you’ve installed the plugin from Marketplace, open Photoshop again and the plugin will automatically connect to the app. To verify, click on Photoshop’s Plugin Menu, select the “Logitech” item, and select Photoshop Plugin. The small panel that opens will show Connected and the version number.

Adobe Premiere Pro

How do I connect my MX Creative Console to the Premiere Pro plugin?

You’ll first need to activate the MX Creative Console as a control surface (device) in Premiere Pro. This has only to be done once.

To activate:

1. Open the Control Surface menu:
   • • Mac: PREMIERE PRO > SETTINGS > CONTROL SURFACE
     • Windows: EDIT > PREFERENCES > CONTROL SURFACE



2. Click on ADD, select “LogiPlugin”, then click OK.



Adobe Lightroom

How do I  connect my MX Creative Console to the Lightroom Classic plugin?

After you’ve installed the plugin from Marketplace, open Lightroom Classic again and the plugin will automatically connect to the app.

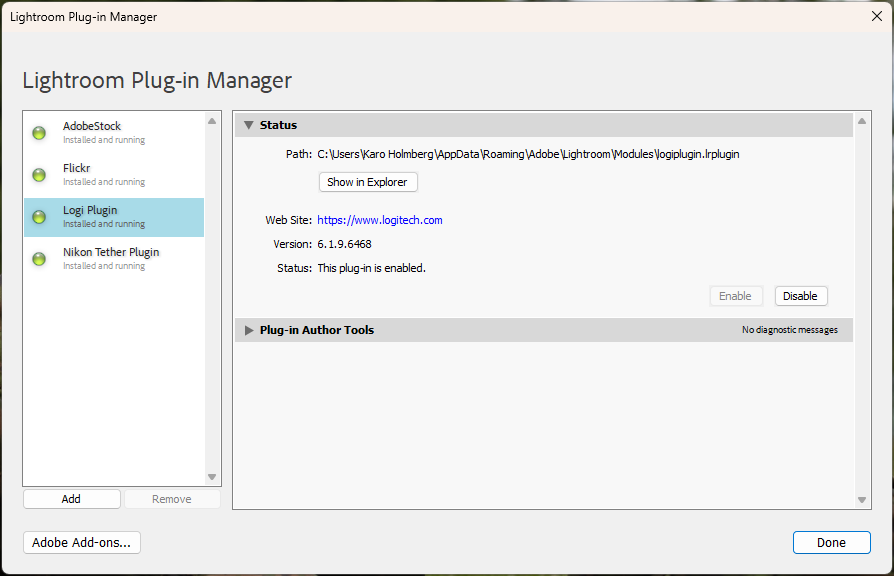

To verify the plugin has been correctly installed, open Lightroom Classic and select File > Plugin Manager. You should see the plugin listed as active.

What are modes in Lightroom Classic and how do I use them?

Certain applications have different modes within the application itself, where the set of useful mappings will be different. Think of them as multiple profiles for the same application.

In Lightroom Classic we already have the ability for different mappings for these modes:

• When Lightroom Classic is in Library :
  • Default Library mode
• When Lightroom Classics in Develop :
  • Default Develop mode
  • Crop Overlay
  • Spot removal
  • Red Eye correction
  • Masking

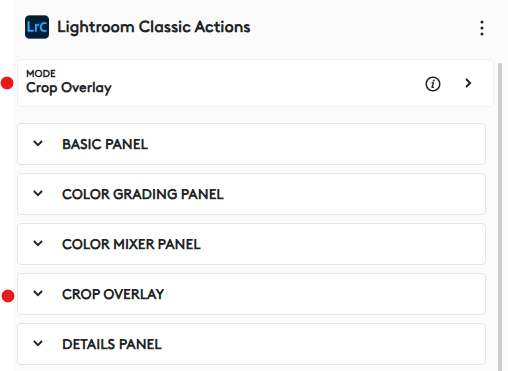

You can select the mode using the mode selector on the top of the Lightroom Classic action list. Note that each mode could have a different set of actions as some are not possible, depending on the mode you select.

For each mode you can then select and configure the mapping or your device(s) accordingly.

Adobe Illustrator

How do I connect my MX Creative Console to the Illustrator plugin?

After you’ve installed the plugin from Marketplace, open Illustrator again and the plugin will automatically connect to the app.

Adobe After Effects

How do I connect my MX Creative Console to the After Effects plugin?

After you’ve installed the plugin from Marketplace, open After Effects again and the plugin will automatically connect to the app.

Adobe Audition

How do I connect my MX Creative Console to the Audition plugin?

After you’ve installed the plugin from Marketplace, open Audition to activate it as a Control Surface in the Audition preferences:

Go to Audition: Preferences > Control Surface > Add Logi Plugin
