NOTE: Information is for reference only and may be subject to change.
| General Product Information: | [Compliance Certification (CE) Link] | |||
| Warranty / Self Help | Please see product support page for warranty duration and frequently asked questions. | |||
| CPU Speed | Memory | Display Resolution | Hard Drive Space | |
| System Requirements | 2 GHz or faster | 1 GB RAM or more | 1024 x 720 or higher | 100 MB for installation 500 MB or more for video storage |
| Technology | Power Over Ethernet (PoE) with appropriate customer-supplied PoE equipment | |||
| Software Support (at release) | Alert Commander 3.0 NOTE: Check website for latest software release | |||
| OS Support (at release) | Windows XP SP3, Windows XP x64 SP3, Windows Vista, Windows Vista x64, Windows 7, Windows 7 x64 | |||
| Camera Specifications: | |
| Available Image(s) | Click for: [Front and Left Side Image], [Bottom and Cable Connection Bay Image] |
| Connection Type | RJ45 (yellow tip) - Power Over Ethernet (POE) |
| Lens and Sensor Type | Glass, CMOS |
| Focus Type | Fixed |
| Field of View (FOV) | 132° Diagonal |
| Focal Length | 5 mm |
| Depth of Field | 1 meter to infinity |
| Sensor Resolution | 2 MP |
| Frame Rate (max) | 15fps @ 960x720p |
| Onboard Storage | microSD slot (supports up to 32 GB SDHC memory) |
| Microphone | Built-in |
| Recording | Motion triggered H.264 video and audio |
| Buttons | Reset |
| Indicator Lights (LED) | Camera Status, Motion Indicator, Ethernet Activity, Ethernet Link |
| Night Vision Illuminators | Two wide angle high powered 850 nm |
| Additional Hardware in Package: | |

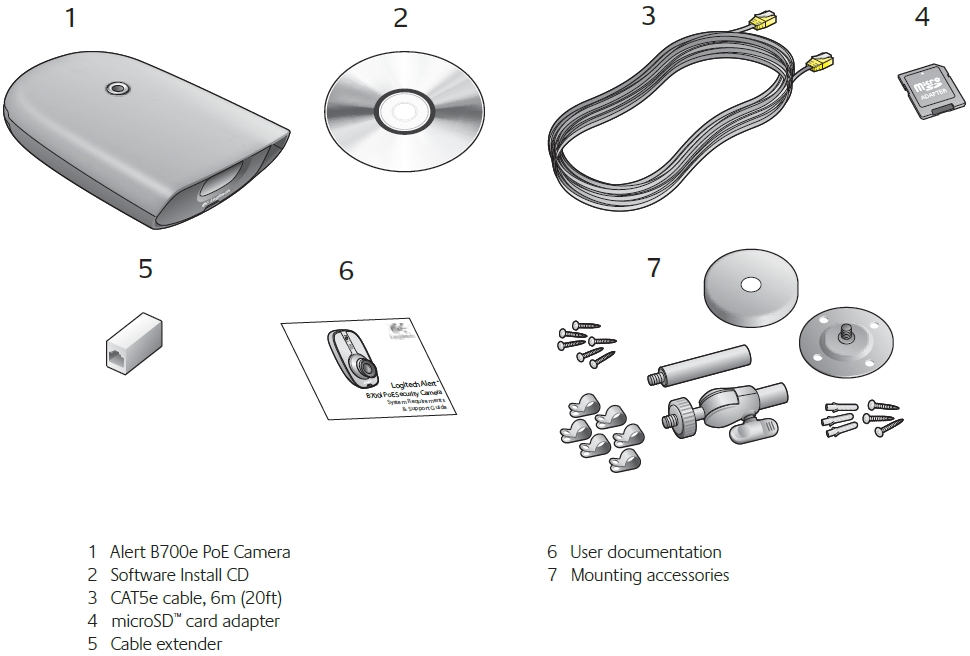

| Available Image(s) | Click for: [Package Content] |
| SD Card | 2 GB microSD card |
| SD Card Adapter | microSD-to-SD card adapter |
| Accessories |
|
| Product Dimensions: | ||||
| Product component | Width | Depth/Length | Height | Weight |
| Camera | 94 mm (3.7 inch) | 161 mm (6.34 inch) | 46 mm (1.81 inch) | 531 g (18.73 ounce) |
