Because game settings are subjective, the following suggestions are to help you determine which settings may improve your game experience. Where relevant, we've included the wheel's settings display, as well as in-game settings. These settings all assume that your wheel is set to 8Nm of strength — you can set the dampener settings lower if you're running the wheel at a lower strength. Feel free to experiment with your own settings to personalize the wheel to your preference.

• PC games

• PlayStation games

• Xbox games

Compatibility Mode

Especially on computers, some titles have preset configurations for wheels that make getting started even easier, including ensuring that onscreen button prompts match those of the wheel you're using. Therefore, it may be easier to switch the RS50 to the PRO compatibility mode to facilitate setup for those titles. It's usually still possible to use the wheel in RS50 mode for those titles by manually configuring the controls in the title's options.

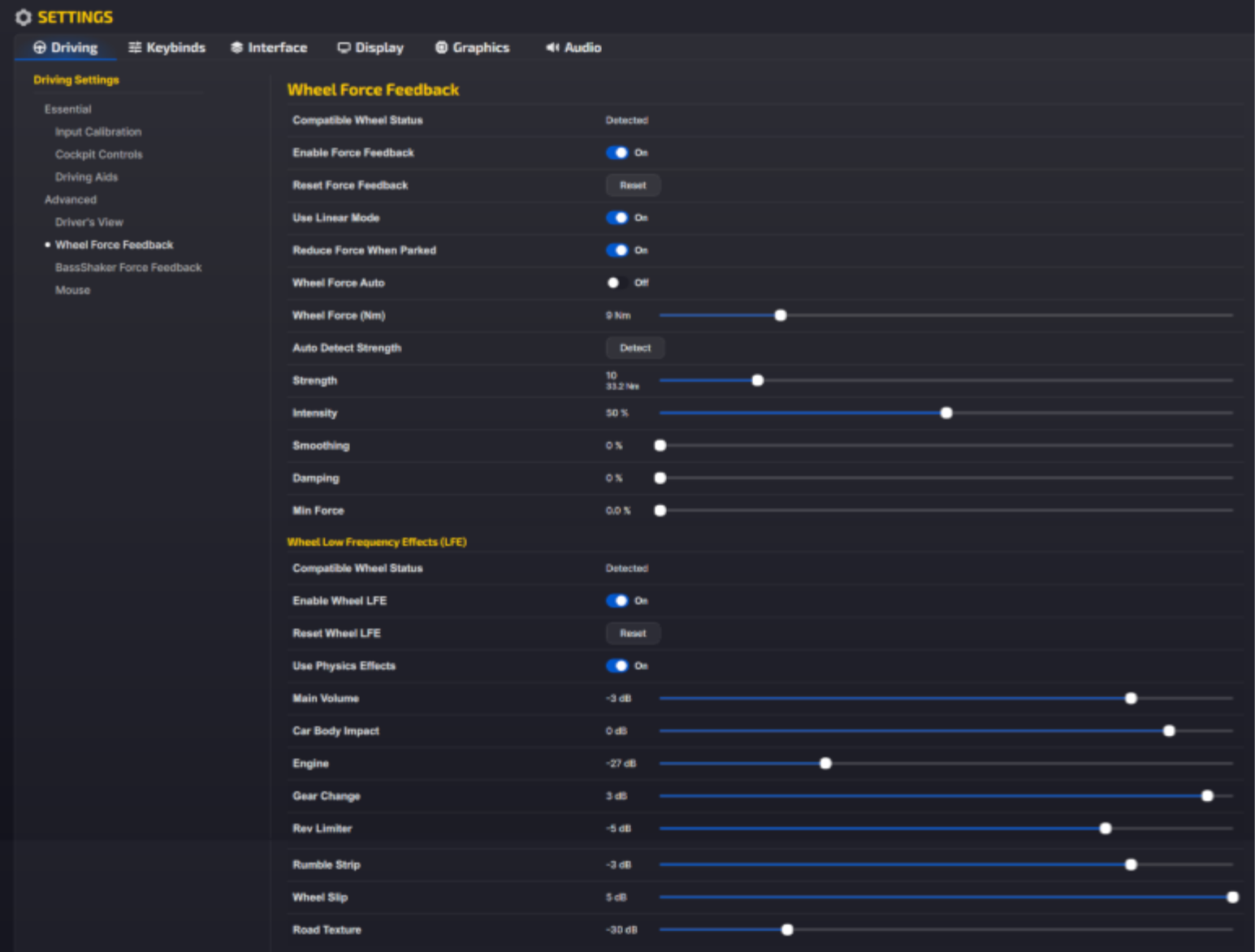

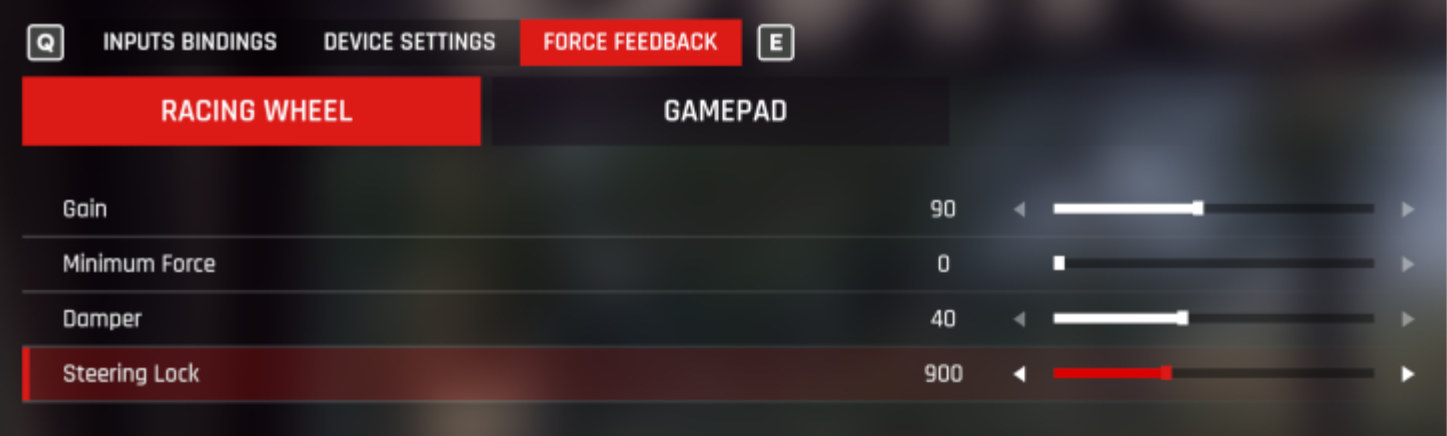

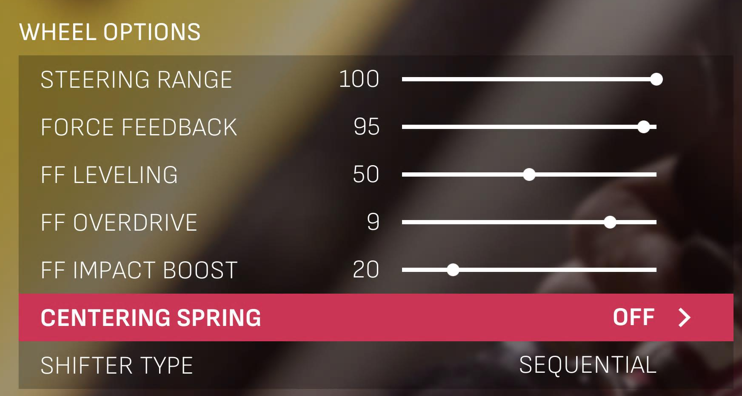

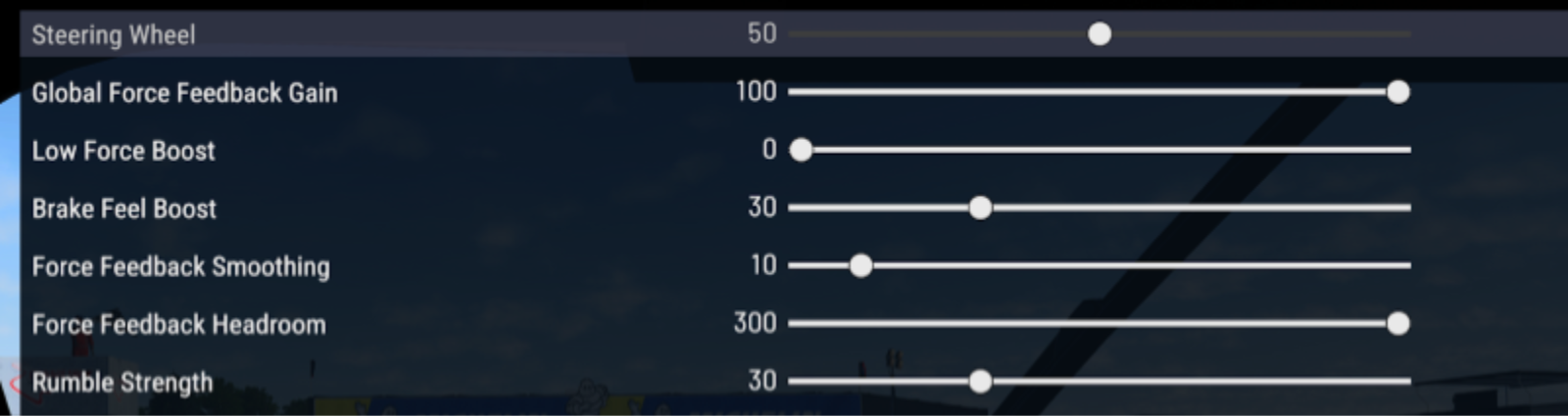

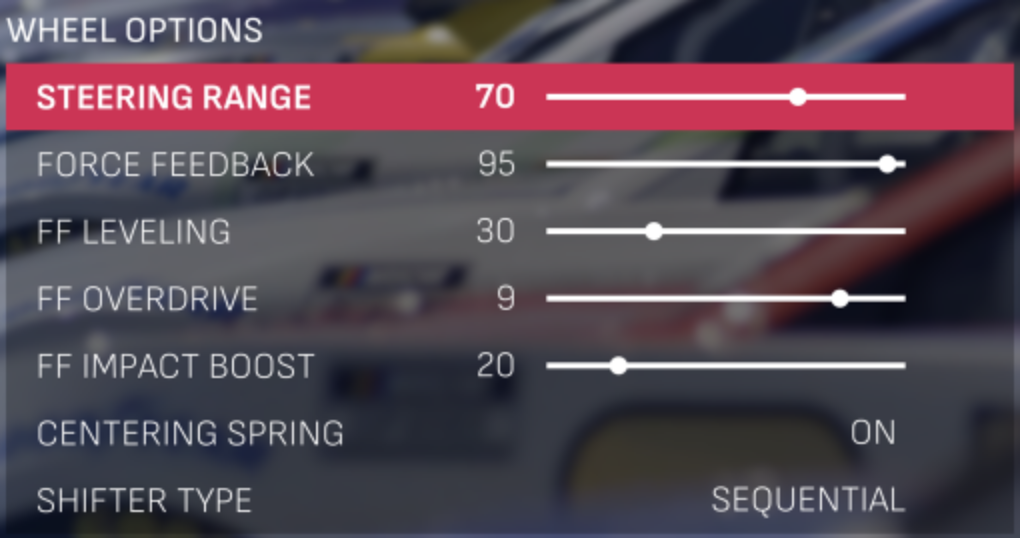

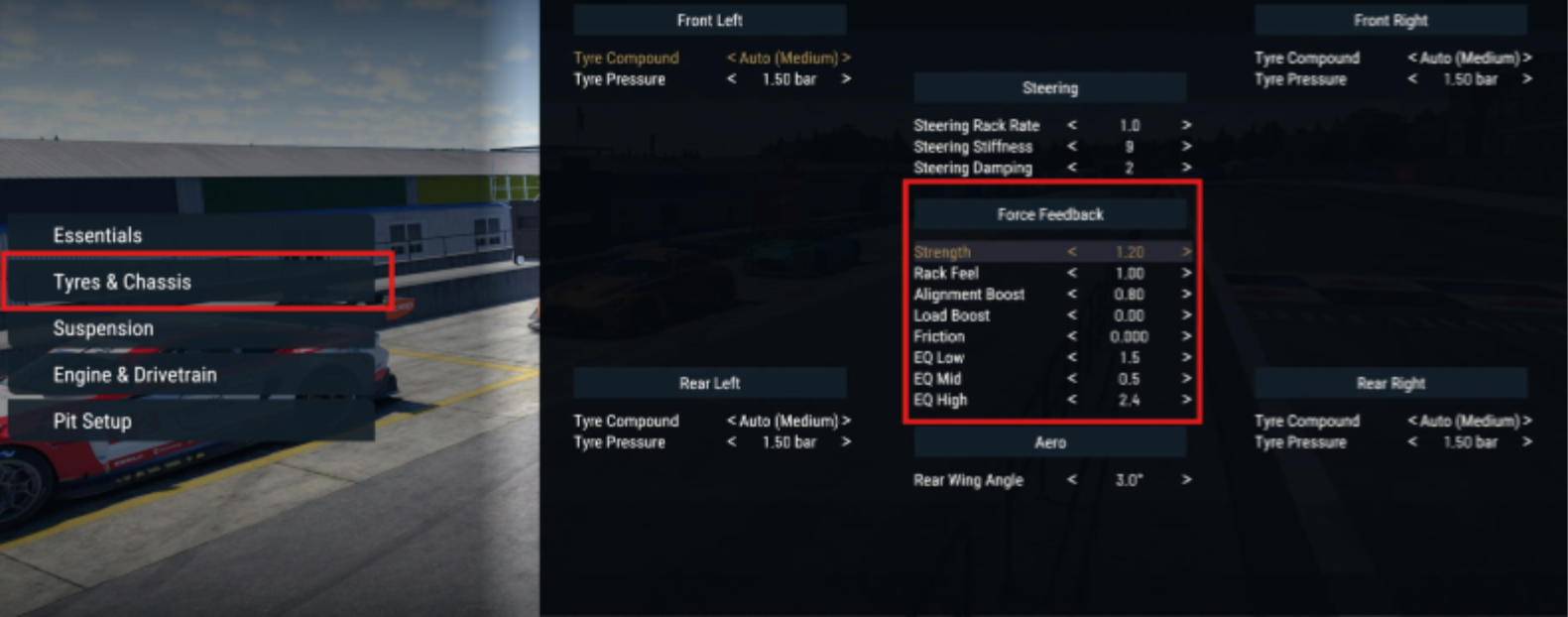

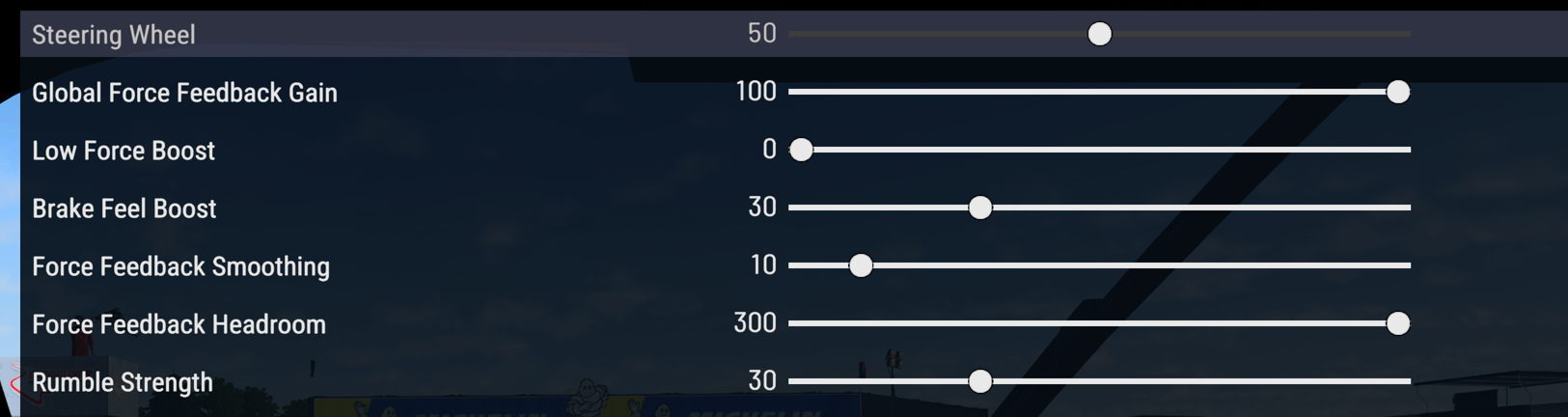

There are additional titles that the wheel works with that aren't listed here, but they haven't been specifically tested. In the vast majority of cases, if a title supports the Logitech G29, G920, or G923, then the RS50 Wheel will also work — some initial setup may just be required.  For titles in this list that require manual setup, regardless of whether you're in RS50 or PRO mode, we've included an image of their assignments screen so that you can see how they should be configured. The compatibility mode can be adjusted from the OLED settings screen of the wheel and remember to make sure you have chosen your mode before starting a title.

Force Feedback Filter

This allows you to adjust a filter setting that can help reduce unwanted effects from the game titles. High values will produce a smoother feeling from the wheel, whereas lower values will create a more "raw" experience; this is all about personal preference.  The Auto setting will usually create the most ideal experience by attempting to match the filter to the rate at which the game title updates its force feedback.

Dampener

A direct drive wheel can be incredibly responsive which might result in some titles feeling like the wheel is moving too rapidly in response to in-game effects.  Adding Dampener will help alleviate this and can also help to recreate the sensations you get in a real car where all of the components that contribute to the feeling you get from the steering wheel (tires, suspension, and so on).

Ideally, you should set the dampener as low as possible in order to get the most response from the wheel. However, in some titles you will notice that if you let go of the wheel while on a straight it will quickly start oscillating left and right. Our recommendation is to make sure you keep hold of the wheel at all times when in use. If you do let go and the wheel starts oscillating, then pause the game title first before attempting to take hold of the wheel in order to prevent injury.

TF Audio

Adjusts the gain for the vibrotactile effects sent to the wheel in titles that utilize Trueforce. It's generally recommended to set this at a level that allows for subtle cues rather than overwhelming the overall experience.

Angle

This sets the wheel's overall response angle within the limits defined by the setting.  Formula 1 cars, for example, will use 360 degrees of overall rotation (180 degrees left or right from center) so if you leave the angle set to 1080 then it will require a lot of turning of the wheel in order to achieve a harder turn. In this case, setting the angle to 360 degrees will ensure you have the correct responsiveness in your steering.  Whether you need to adjust this at all will differ with the different titles on different platforms. For example, the Formula 1 titles on a computer (PC) will typically require you to set the angle to 360 degrees, whereas on a console you should leave the wheel set to its maximum angle — the title takes care of it for you.

PC

Game Title	Compatibility Mode	FFB Filter	Dampener	TF Audio	Angle	Click to View Settings
Assetto Corsa	RS	5	90	N/A	1080
Assetto Corsa Competizione	RS	3	OFF	30	Set Per Car
Assetto Corsa EVO	RS	5	OFF	85	1080
Assetto Corsa Rally	RS	7	OFF	N/A	900
American Truck Simulator	RS	4	70	N/A	2520
Automobilista 2	PRO	1	OFF	40	1080
BeamNG Drive	RS	5	OFF	80	1080
Car X Drift Racing Online	RS	1	50	N/A	1080
Car X Street	RS	11	60	N/A	540
Dakar Desert Rally	RS	7	OFF	N/A	900
Dirt Rally	RS	6	50	N/A	Set Per Car
Dirt Rally 2.0	RS	5	60	30	Set Per Car
EA Sports WRC	PRO	5	60	30	1080
Endurance Motorsport Series	RS	4	20	100	360
Euro Truck Simulator 2	RS	3	60	N/A	2520
F1 25 (+ 22-24)	RS	5	70	20	360
Forza Horizon 5	PRO	6	30	N/A	900
Forza Motorsport (2023)	PRO	1	OFF	40	1080
GRID (2019)	RS	5	40	80	1080
GRID Legends	RS	2	20	N/A	1080
iRacing	RS	1	OFF	100	1080
Japanese Drift Master	PRO	4	20	N/A	500
Le Mans Ultimate	RS	4	20	N/A	1080
NASCAR 25	RS	5	20	N/A	900
Project Cars 2	RS	5	20	N/A	1080
Project Motor Racing	RS	11	20	N/A	900
RaceRoom Racing Experience	RS	9	OFF	N/A	Change Per Car
Rennsport	RS	1	OFF	N/A	500
rFactor 2	RS	1	OFF	N/A	Set Per Car
The Crew Motorfest	RS	4	OFF	N/A	1080
Tokyo Xtreme Racer	RS	6	60	N/A	360
Wreckfest	RS	8	70	N/A	Set Per Car

Consoles

PlayStation

Game Title	Compatibility Mode	FFB Filter	Dampener	TF Audio	Angle	Click to View Settings
Assetto Corsa	RS	9	70	N/A	Set Per Car
Assetto Corsa Competizione	PRO - PS5 version PS4 version not supported	7	25	50	1080
CarX Drift Racing Online	RS	7	15	N/A	1080
Dakar Desert Rally	RS	7	OFF	N/A	900
Dirt Rally 2.0	RS	4	25	25	Set Per Car
EA Sports WRC	RS	4	25	35	900
F1 25	RS	1	70	20	360
Forza Horizon 5	RS	9	30	N/A	900
Gran Turismo 7 (Road Cars)	RS	6	20	100	Set by game per car automatically
Gran Turismo 7 (Gr.x cars)	RS	6	20	100	Set by game per car automatically
GRID (2019)	RS	7	15	20	N/A
GRID Legends	PRO	13	30	N/A	900
Monster Truck Championship	RS	11	25	25	N/A
NASCAR 25	RS	5	30	N/A	450
Need For Speed: Heat	RS	12	30	N/A	540
Project Cars 2	RS	8	40	N/A	1080
Project Motor Racing	RS	1	20	N/A	900
The Crew Motorfest	RS	8	OFF	N/A	1080
World Of Outlaws	RS	8	80	N/A	2700
Wreckfest	RS	5	50	N/A	900

Xbox

Game Title	Compatibility Mode	FFB Filter	Dampener	TF Audio	Angle	Click to View Settings
Assetto Corsa	RS	4	100	N/A	Set Per Car
Assetto Corsa Competizione	PRO	8	70	30	1080
Dakar Desert Rally	RS	7	OFF	N/A	900
DIRT 5	RS	5	50	N/A	600
Dirt Rally 2.0	RS	6	20	50	Set Per Car
EA Sports WRC	RS	6	15	N/A	2700
F1 25	RS	5	70	20	2700
Forza Horizon 4	RS	8	30	N/A	1080	—
Forza Horizon 5	RS	6	30	N/A	900
Forza Motorsport (2023)	RS	8	15	100	2700
GRID (2019)	RS	7	15	45	Change Per Car
GRID Legends	PRO	7	15	N/A	Change Per Car
Monster Truck Championship	RS	11	25	25	1080
NASCAR 25	RS	5	30	N/A	2700
NASCAR Heat 5	RS	4	50	N/A	2700
Need For Speed: Heat	RS	8	70	N/A	360
Project Cars 2	RS	5	50	N/A	2700
Project Cars 3	RS	5	50	N/A	900
Project Motor Racing	RS	1	20	N/A	2700
Roadcraft	RS	5	30	85	700
Taxi Life	RS	6	20	N/A	900
The Crew Motorfest	RS	5	50	N/A	2700
World Of Outlaws	RS	8	80	N/A	2700
Wreckfest	RS	8	90	N/A	Set Per Car
