NOTE: Information is for reference only and may be subject to change.
| General Product Information: | [Compliance Certification (CE) Link] |
| Warranty / Self Help | See product support page for warranty duration and frequently asked questions. |
| Cordless Protocol | 27 Mhz |
| Cordless Range | 6 Feet or 2 Meters |
| Software Support (at release) | SetPoint 4.80, SetPoint 3.10, SetPoint 2.60 (NOTE: Check website for the latest software release) |
| OS Support (at release) | Windows XP, Windows XP x64, Windows Vista, Windows Vista x64 (SetPoint 4.80) Windows 2000 (SetPoint 3.10) Windows 98, Windows ME (SetPoint 2.60) |
| Keyboard Specifications: | |

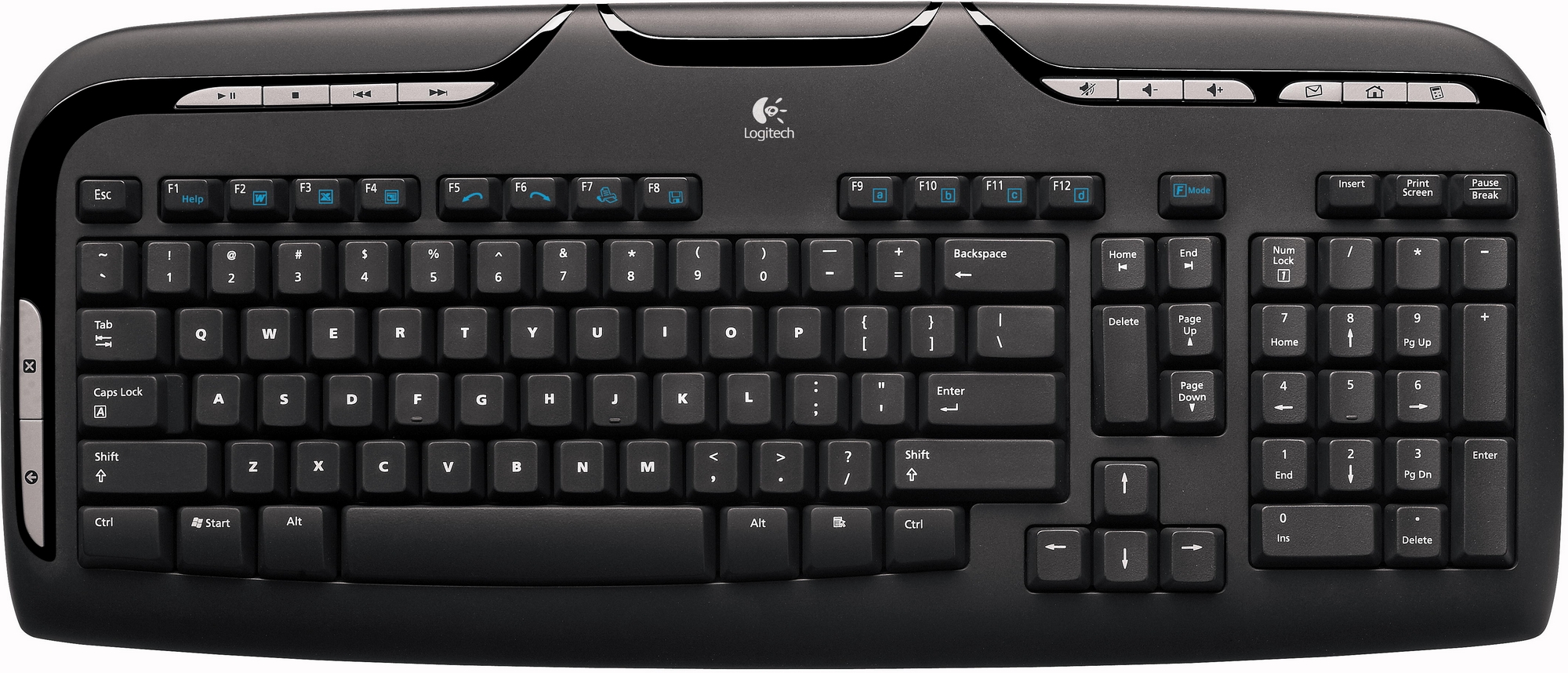

| Available Image(s) | Click for: [Keyboard Image Link] |
| Connection Type | Cordless USB |
| Connect / Power Button | Connect button |
| Battery Size and Type | 2 AAA Alkaline (Not Rechargeable) |
| Battery Replacement | Replaceable |
| Battery Life | 6 Months |
| Indicator Lights (LED) | N/A |
| Special Keys | Num Lock, CAPS Lock, F Mode |
| Mouse Specifications: | |
| Available Image(s) | Click for: [Mouse Image Link] |
| Connection Type | Cordless USB |
| Sensor Type | Visible Optical |
| Connect / Power Button | Connect/Reset button |
| FreeSpin / Ratchet Mode | N/A |
| Battery Size and Type | 2 AA Alkaline (Not Rechargeable) |
| Battery Replacement | Replaceable |
| Battery Life | 4 Months |
| Indicator Lights (LED) | Power (indicated by red optical light) |
| Receiver Specifications: | |
| Available Image(s) | Click for: [Receiver Image Link] |
| Connection Type | PS/2 or USB |
| Size | Compact with cable |
| USB Type | Low Speed, USB 2.0 |
| USB VID_PID | VID_046D&PID_C517 |
| Connect | Connect button |
| Indicator Lights (LED) | Caps Lock, Num Lock, F Lock (C-BT44) NOTE: Indicator lights blink from left to right when Connect button is pressed and stops blinking when connected to a device. Caps Lock, Num Lock, Scroll Lock, F Lock, Connect (C-BO17) NOTE: Connect light blinks when Connect button is pressed and goes off when connected to a device. |
| Additional Hardware in Package: | |
| Available Image(s) | N/A |
| USB Desktop Stand | Not Included |
| Product Dimensions: | ||||
| Product component | Width | Depth/Length | Height | Weight (no batteries) |
| Keyboard | 330mm (13 inch) | 168mm (6.6 inch) | 16mm (.63 inch) | 709.4 g (25.02 ounce) |
| Mouse | 60.5mm (2.38 inch) | 117.4mm (4.62 inch) | 39.6mm (1.56 inch) | 75.2g (2.65 ounce) |
| Receiver (C-BT44) | 53.33 mm (2.1 inch) | 83.25 mm (3.28 inch) | 25.95 mm (1.02 inch) | 105.4 g (3.72 ounce) |
