NOTE: Information is for reference only and may be subject to change.
| General Product Information: | [Compliance Certification (CE) Link] |
| Warranty / Self Help | See product support page for warranty duration and frequently asked questions. |
| Cordless Protocol | 2.4 GHz eQUAD (2008+ version) 2.4 GHz QUAD (2007 version) |
| Cordless Range | 30 Feet or 10 Meters |
| Software Support | SetPoint 4.80, LCC 2.7, LCC 3.1, Connect.exe (NOTE: Check website for the latest software release) |
| OS Support | Windows XP, Windows XP x64, Windows Vista, Windows Vista x64, Mac OS X 10.3.9 (LCC 2.7), Mac OS X 10.4.x to 10.6.x (LCC 3.1) |
| Mouse Specifications: | |
| Available Image(s) | Click for: [Mouse Image Link] |
| Connection Type | Cordless USB |
| Sensor Type | Invisible Laser |
| Connect / Power Button | Connect/Power button |
| FreeSpin / Ratchet Mode | Scroll Wheel Button |
| Battery Size and Type | 2 AAA Alkaline (Not Rechargeable) |
| Battery Replacement | Replaceable |
| Battery Life | 6 Months |
| Indicator Lights (LED) | Power, Battery |

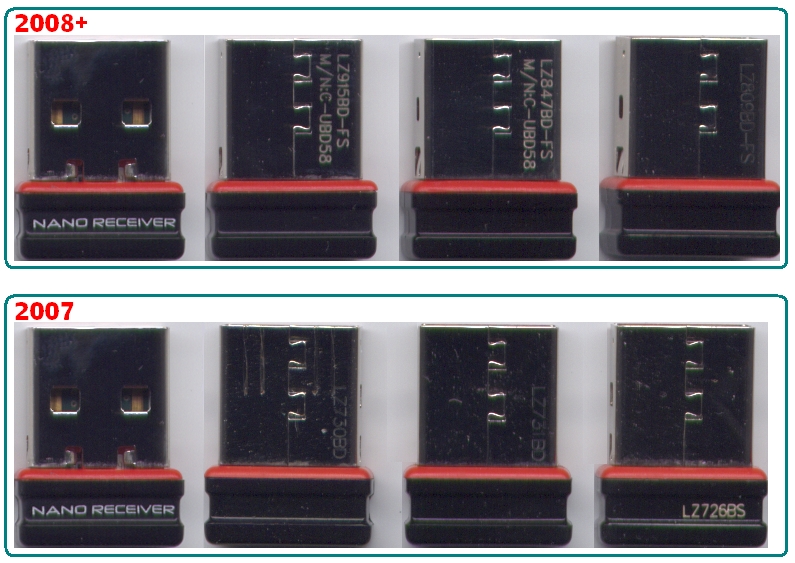

| Receiver Specifications: | |
| Available Image(s) | Click for: [Receiver Image Link] |
| Connection Type | USB |
| Size | Nano |
| USB Type | Full Speed, USB 2.0 (2008+ version) Low Speed, USB 2.0 (2007 version) |
| USB VID_PID | VID_046D&PID_C526 (2008+ version) VID_046D&PID_C51A (2007 version) |
| Connect | No button |
| Indicator Lights (LED) | N/A |
| Additional Hardware in Package: | |
| Available Image(s) | Click for: [USB Stand Image Link] |
| USB Desktop Stand | Included (5 Feet or 1.52 Meter cable length) |
| Product Dimensions: | ||||
| Product component | Width | Depth/Length | Height | Weight (no batteries) |
| Mouse | 61.2mm (2.41 inch) | 97.9mm (3.85inch) | 33.9mm (1.33 inch) | 96.39g (3.4 ounce) |
| Receiver | 14.4mm (.57 inch) | 18.7mm (.74 inch) | 6.1mm (.24 inch) | 1.8g (.06 ounce) |
