Time to make yourself comfortable!

Thank you for getting the new ERGO M575S/ERGO M575SP trackball. We hope you will enjoy your new trackball.

Let's get started

You can connect your ERGO M575S/ERGO M575SP in two different ways. Please follow the instructions below to connect wirelessly using Bluetooth or the Logi Bolt receiver.

Connect using Bluetooth

1. Make sure ERGO M575S/SP is turned on and the pull-tab is removed.
2. Long press the connect button until the LED light blinking — your device is ready to pair via Bluetooth.
   NOTE: Make sure the LED is blinking fast if you want to pair — if not, press and hold the button for three seconds.
3. Open Bluetooth settings on your computer:
   On MacOS: Open System preferences > Bluetooth > Add ERGO M575S or ERGO M575SP.
   On WIndows: Select Start > Settings > Devices > Add Bluetooth device > Add ERGO M575S or ERGO M575SP.
4. Connected.

Connect using the Logi Bolt Receiver

1. Make sure your ERGO M575S/ERGO M575SP is turned on and the pull-tab is removed.
2. Plug the Logi Bolt receiver into a port on your computer.
3. Connected.

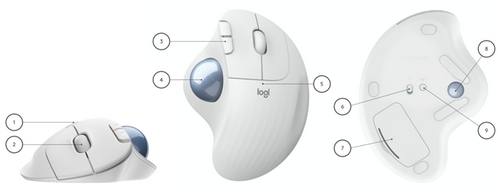

ERGO M575S/ERGO M575SP at a glance

1. Hand sculpted form
2. Wide, comfort scroll-wheel
3. Side keys
4. Precision trackball
5. Power LED
6. On/Off switch
7. Battery door and receiver storage
8. Connect button
9. Trackball eject hole

To unlock the full potential of your ERGO M575S/ERGO M575SP, download Logitech Options+.

Features

Hand-sculpted shape

The new ERGO M575S/ERGO M575SP trackball is designed to promote a more relaxed posture. The sculpted ergonomic shape naturally fits your hand providing full palm support. ERGO M575S/ERGO M575SP is thumb-operated with no need to move your arm around to move the cursor, so your hand and arm can stay rested and relaxed.

The extra-wide main clicks and scroll wheel are tilted to match the overall angled shape of ERGO M575S/ERGO M575SP — allowing a more natural finger movement when scrolling and overall better, more intuitive usability and comfort.

Try to keep your hand and forearm well supported. Avoid resting your wrist or forearm on cold surfaces or sharp table edges, to get the best and most comfortable experience using ERGO M575S/ERGO M575SP.

Trackball Navigation
The ERGO M575S/ERGO M575SP precision tracking sensor allows you to adjust the DPI setting of your trackball from between 100DPI-2000DPI. You can adjust the speed in Logitech Options.

Back/Forward buttons

The Back/Forward buttons on ERGO M575S/ERGO M575SP give you quick access to shortcuts that allow you to navigate in browsers or in your favorite apps.

You can use Logitech Options to customize the Back/Forward buttons to your exact preferences.

Power Management

ERGO M575S/ERGO M575SP is battery powered. A single AA battery lasts up to 18 months with the included Logi Bolt USB receiver and up to 18 months with Bluetooth Low Energy.

The battery indicator LED will let you know when the power is low, and when you need to recharge. Install Logitech Options to get on-screen notifications.

• Green LED — More than 10% battery life
• Red light — Less than 10% battery life

Downloads

Download Logitech Options+ for macOS and Windows.
