NOTE: Information is for reference only and may be subject to change.
| General Product Information: | [Compliance Certification (CE) Link] | |||
| Warranty / Self Help | Please see product support page for warranty duration and frequently asked questions. | |||
| Operation Requirements | Available Ethernet port on home network At least 2 open AC outlets (location dependant on desired product placement) | |||
| Technology | HomePlug AV | |||
| Software Support (at release) | Powerline Utility software (NOTE: Check website for the latest software release) | |||
| OS Support (at release) | Windows XP, Windows XP x64, Windows Vista, Windows Vista x64, Windows 7, Windows 7 x64 | |||
| Powerline Bridge Specifications | |

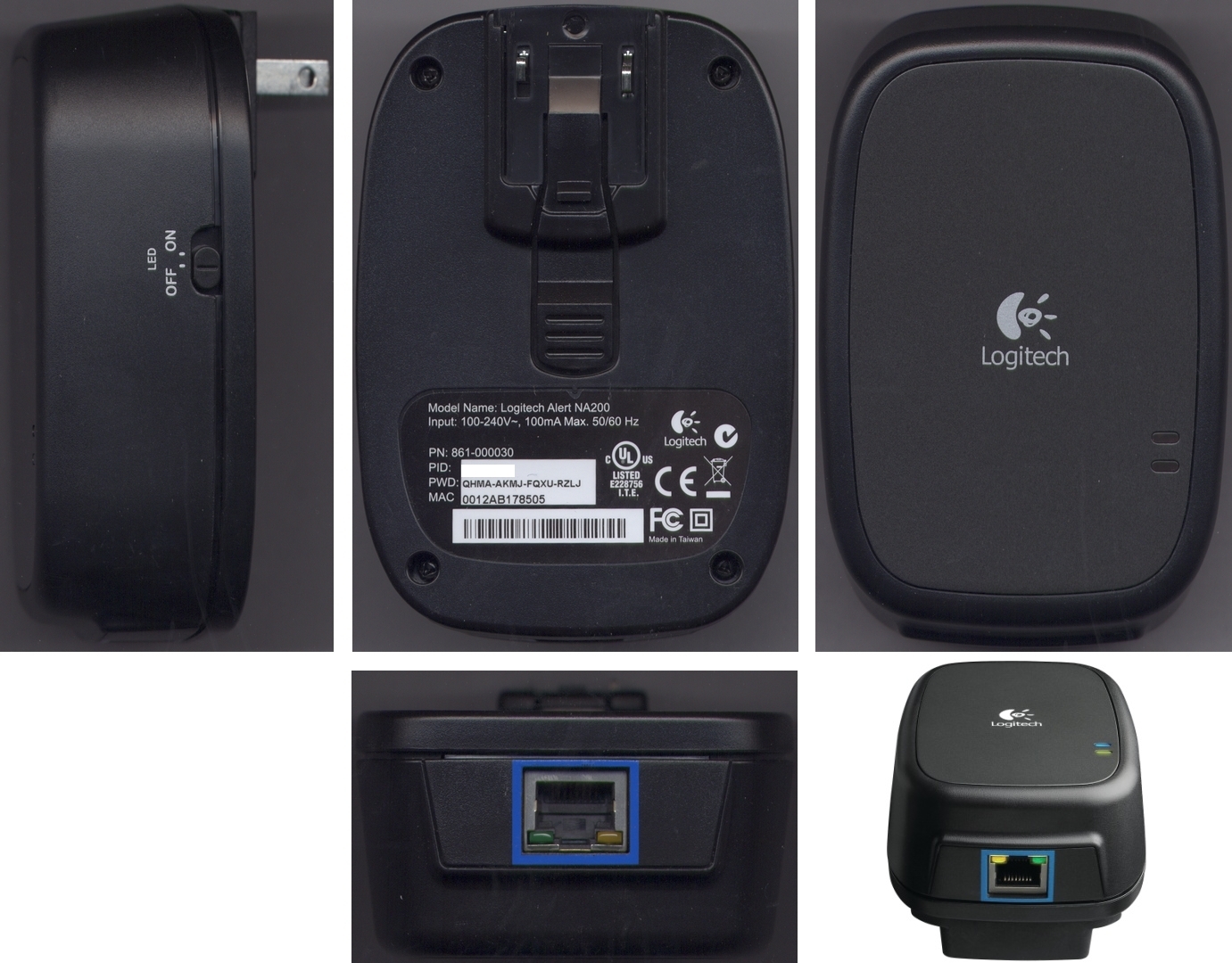

| Available Image(s) | Click for: [All Sides and Cable Connection Bay Image] |
| Connection Type | RJ45 (blue tip), AC Power Plug |
| Switch | LED on/off |
| Indicator Lights (LED) | Home Plug Link, Power Indicator, Ethernet Activity, Ethernet Link |
| Plugs Slider | US |
| Network Port | 10/100 Ethernet port (Full or Half Duplex) |
| Powerline Transmission Speeds | 200 Mbs PHY rate |
| Encryption Type | 128-bit AES Link Encryption with key management |
| Voltage | 100 - 240 VAC, 50 or 60 Hz |
| Power Consumption | 10 Watts (at full load) |
| Operating Temp | +32°F to +113°F (0°C to +45°C) |
| Storage Temp | -14°F to +140°F (-10°C to +60°C) |
| Humidity | 5% to 90% (relative, non-condensing) |
| Electromagnetic Compliance (EMC) | FCC Part 15 Class B, CE Class B |
| Additional Hardware in Package: | |
| Available Image(s) | Click for: [HD 200a Package Content] [HD 200 Package Content] |
| Accessories |
HD Powerline 200a Starter Kit:
HD Powerline 200 Adapter:
|
