NOTE: Information is for reference only and may be subject to change.
| General Product Information: | [Compliance Certification (CE) Link] |
| Warranty / Self Help | See product support page for warranty duration and frequently asked questions. |
| Cordless Protocol | 2.4 GHz eQUAD |
| Cordless Range | 30 Feet or 10 Meters |
| Software Support (at release) | SetPoint 4.80, Connect.exe (NOTE: Check website for the latest software release) |
| OS Support (at release) | Windows XP, Windows XP x64, Windows Vista, Windows Vista x64, Windows 7 |
| Keyboard Specifications: | |
| Available Image(s) | Click for: [Keyboard Image Link] |
| Connection Type | Cordless USB |
| Connect / Power Button | On/Off switch |
| Battery Size and Type | 2 AA Alkaline (Not Rechargeable) |
| Battery Replacement | Replaceable |
| Battery Life | 36 Months |
| Indicator Lights (LED) | Battery, Caps Lock, Num Lock, Scroll Lock on LCD display (NOTE: keyboard LCD display is on when power is on) |
| Special Keys | Scroll Lock, Num Lock, CAPS Lock, FN |

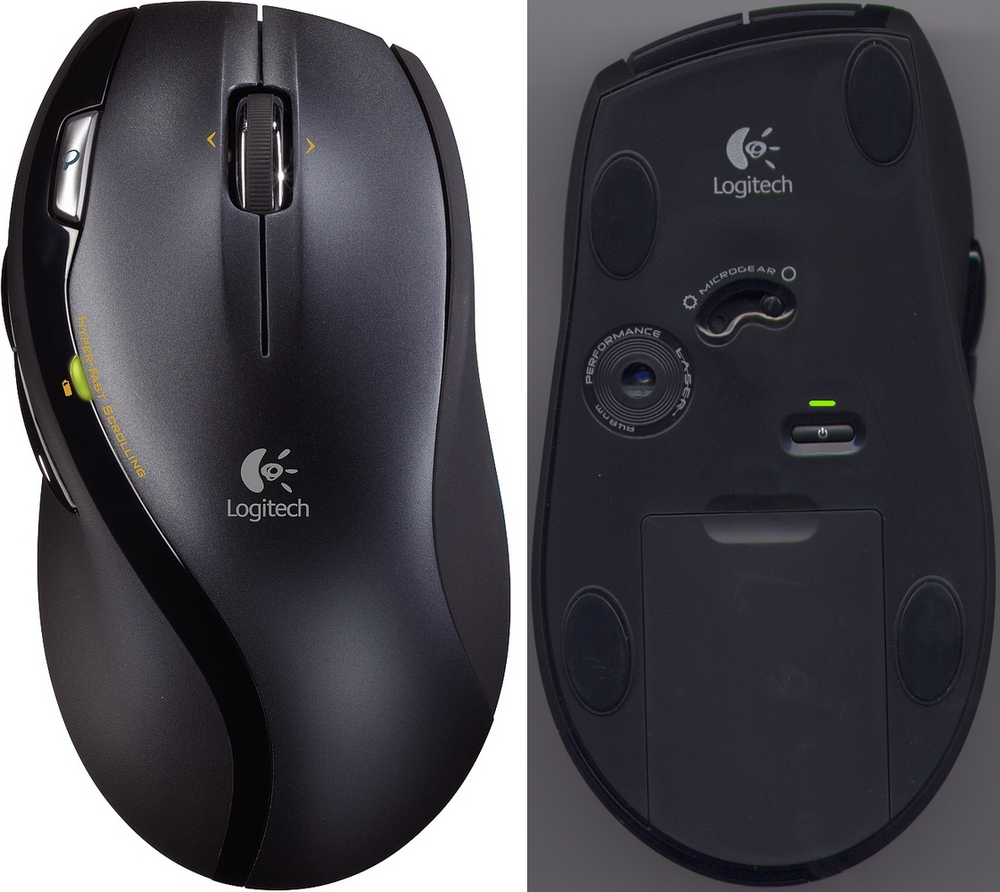

| Mouse Specifications: | |
| Available Image(s) | Click for: [Mouse Image Link] |
| Connection Type | Cordless USB |
| Sensor Type | Invisible Laser |
| Connect / Power Button | Connect/Power button |
| FreeSpin / Ratchet Mode | Switch |
| Battery Size and Type | 2 AA Alkaline (Not Rechargeable) |
| Battery Replacement | Replaceable |
| Battery Life | 12 Months |
| Indicator Lights (LED) | Power, Battery |
| Receiver Specifications: | |
| Available Image(s) | Click for: [Receiver Image Link] |
| Connection Type | USB |
| Size | Mini |
| USB Type | Full Speed, USB 2.0 |
| USB VID_PID | VID_046D&PID_C525 |
| Connect | No button |
| Indicator Lights (LED) | N/A |
| Additional Hardware in Package: | |
| Available Image(s) | N/A |
| USB Desktop Stand | Not Included |
| Product Dimensions: | ||||
| Product component | Width | Depth/Length | Height | Weight (no batteries) |
| Keyboard | 460.3 mm (18.12 inch) | 242.3 mm (9.54 inch) | 30.9 mm (1.22 inch) | 860 g (30.34 ounce) |
| Mouse | 69 mm (2.72 inch) | 125.5 mm (4.94 inch) | 41.5 mm (1.63 inch) | 112g (3.95 ounce) |
| Receiver | 14.3 mm (.56 inch) | 50.2 mm (1.98 inch) | 6.6 mm (.26 inch) | 11.8 g (.42 ounce) |
