NOTE: Information is for reference only and may be subject to change.
Warranty / Self Help See product support page for warranty duration and frequently asked questions.
Cordless Protocol 2.4 Ghz Bluetooth 2.0
Cordless Range 30 Feet or 10 Meter
Software Support (at release)
SetPoint 4.80 BT (NOTE: Check website for the latest software release.)
OS Support (at release) Windows XP, Windows XP x64, Windows Vista, Windows Vista x64

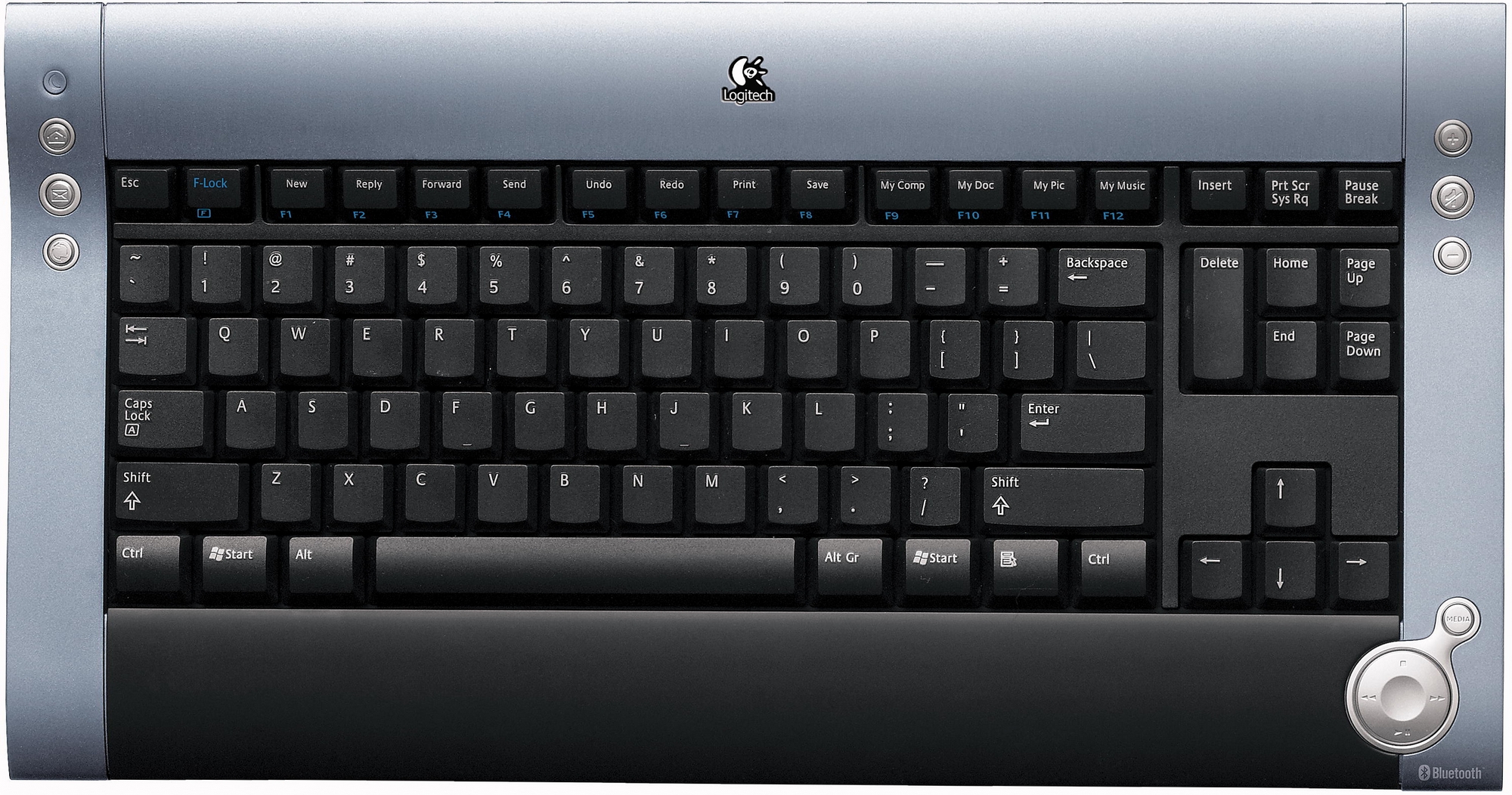

Available Image(s) Click for: [Keyboard Image Link]
Connection Type Cordless USB or Bluetooth
Connect / Power Button Connect/Reset button button
Battery Size and Type 4 AA Alkaline (Not Rechargeable)
Battery Replacement Replaceable
Battery Life 6 Months
Indicator Lights (LED) N/A
Special Keys CAPS Lock, F Lock
Available Image(s) Click for: [Mouse Image Link]
Connection Type Cordless USB or Bluetooth
Sensor Type Invisible Laser
Connect / Power Button Connect/Reset button, On/Off switch
FreeSpin / Ratchet Mode N/A
Battery Size and Type Li-Ion (Rechargeable)
Battery Replacement Not Replaceable
Battery Life Up to 23 days (Fully Charged)
Time to Full Charge 3.5 hours
Indicator Lights (LED) Battery/Power
Available Image(s) Click for: [MediaPad Image Link]
Connection Type Cordless USB or Bluetooth
Connect / Power Button Connect button
Battery Size and Type 2 AA Alkaline (Not Rechargeable)
Battery Replacement Replaceable
Battery Life Up to 10 weeks (NOTE: Depends on numpad, navigator or calculator mode)
Indicator Lights (LED) Battery, Bluetooth Connection on LCD display (NOTE: MediaPad LCD display is on when power is on)
Special Keys N/A
Available Image(s) Click for: [Receiver Image Link]
Connection Type USB
Size Mini
USB Type Full Speed, USB 2.0
USB VID_PID VID_046D&PID_C70B, VID_046D&PID_C70C
Connect Connect button
Bluetooth Feature HCI, HID
Bluetooth Stack MS Stack, WidComm
Indicator Lights (LED) N/A

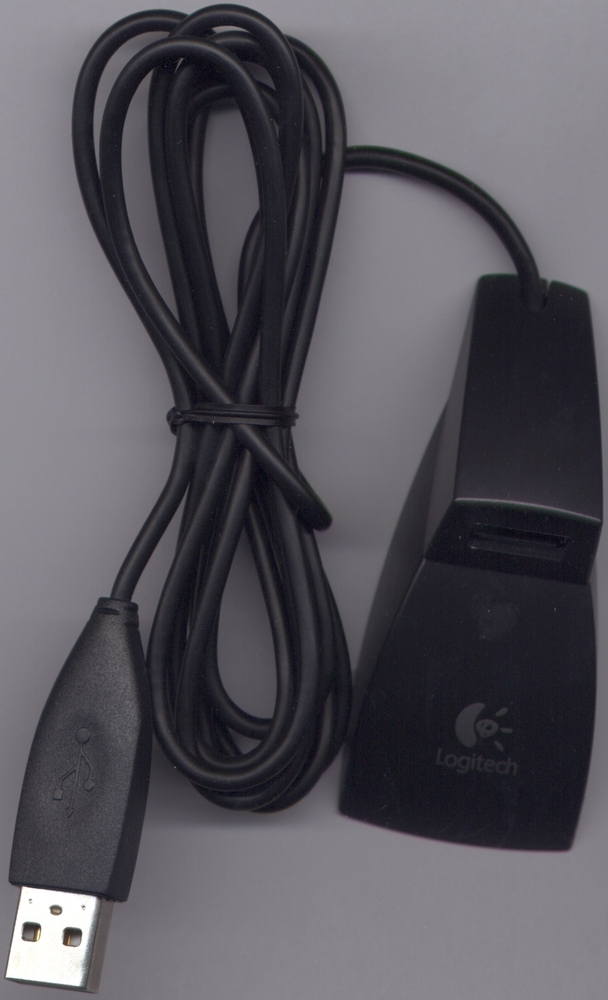

Available Image(s) Click for: [USB Stand Image Link] [Charger Image Link]
USB Desktop Stand Included, 5 Feet or 1.25 Meters cable length
Charger Charging cradle, Removeable A/C power adapter
Product component Width Depth/Length Height Weight (no batteries)
Keyboard 392.1 mm (15.44 inch)
204.3 mm (8.04 inch)
21.4 mm (.84 inch)
850 g (29.98 ounce)
Mouse 80.9 mm (3.18 inch)
126 mm (4.96 inch)
46 mm (1.81 inch)
170 g (6 ounce)
MediaPad 105.4 mm (4.15 inch)
204.3 mm (8.04 inch)
21.6 mm (.85 inch)
220 g (7.76 ounce)
Receiver 18 mm (.71 inch)
60 mm (2.36 inch)
9 mm (.35 inch)
8 g (.28 ounce)
