| Product Information | ||
|---|---|---|
| Component | Model Number (M/N) | Location |
| Keyboard | YU0104 |

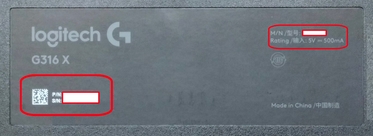

Back of the keyboard |
| What's in the box? |
|---|
| Keyboard, USB to Type-C cable |
| Product Dimensions | |||||
|---|---|---|---|---|---|
| Component | Height | Width | Depth | Cable Length | Weight |
| Keyboard | 40.69mm | 384.5mm | 140.33mm | — | 870g±50g |
| Retail Box | 52.2mm | 397.5mm | 156mm | — | 260g |
| USB A to C cable | — | — | — | 1.8m | — |
| General Product Specifications | |
|---|---|
| Software Support (at release) | G HUB |
| System Requirements | PC with USB 2.0 or above |
| OS/Platform Support (at release) | Windows 10 or later/macOS 12 or later |
| Required Accessory | USB cable in package (recommended) |
| Keyboard Specifications | |
|---|---|
| Corded or Wireless | Corded |
| Connection Type & Protocols | USB |
| USB version | USB 2.0 or above recommended |
| USB Port type (Built-in) | USB Type-C（Built-in） |
| Indication | Dot matrix LED display & Light bar |
| USB Report Rate | 1KHz, 2KHz, 4KHz, 8KHz |
| Backlighting | RGB |
|
Lightsync |
Yes |
| Display Type | Dot matrix LED display for Modes & adjustments, Caps & Num lock, keyboard status |
| Special Keys | Knob for Mode selection and adjustment(volume/key brightness/report rate/music), Game mode switch |
| Switch & Keys Details | Linear Mechanical / Tactile Mechanical switch variants |
| Durability (keypresses) | 20 million |
| Actuation distance (mm / inch) | Linear 1.9±0.4 mm / Tactile 2.2±0.4 mm |
| Actuation force (g / ounce) of switches / keys | Linear 40 ±8g / Tactile 55 ±10g |
| Total Travel Distance (mm / inch) | Linear 3.5±0.3 mm / Tactile 3.3±0.4 mm |
| Anti-ghosting | Yes |
| Key Rollover | 26 Key |
| Onboard memory | Support to store 2 profiles |
| Material Used | Plastic & Silicone |
| Other Features | Removable rubber feet for tilt angle adjustment (4° & 8°), Hot swappable keys & switches |
| Operational & Storage Environmental Requirements |
Operational: Temperature 5 ~ 35°C & Humidity 90±3% Storage : Temperature 0 ~ 40°C & Humidity 90±3% |
| Maximum Power Consumption (Watts) | 1.5W |
