| Product Information | ||
|---|---|---|
| Component | Model Number (M/N) | Location |

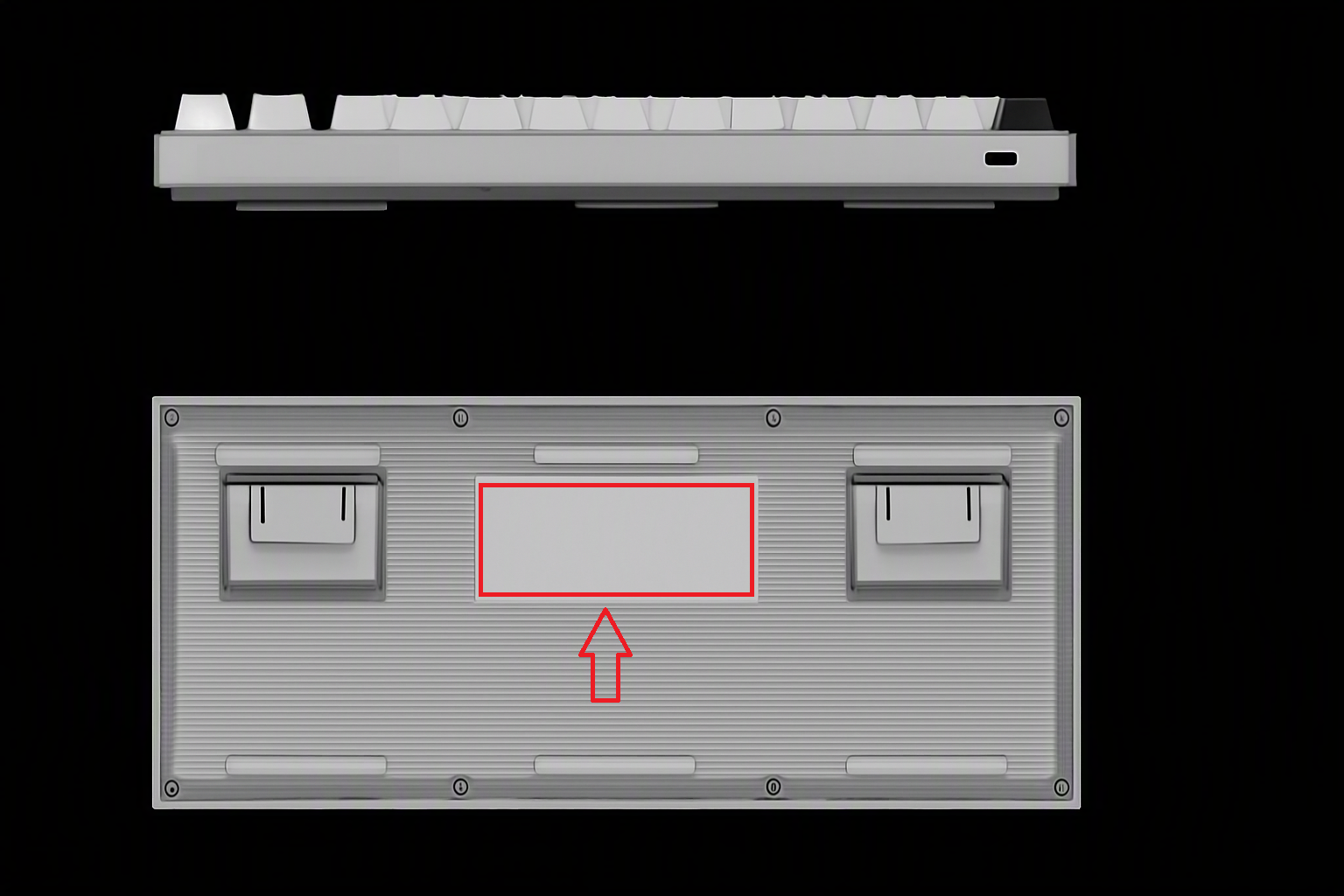

| Keyboard | YU0101 | Back of the keyboard |
| What's in the box? | |||||
|---|---|---|---|---|---|
| Keyboard, USB cable, 4x optional keycaps, switch / keycap puller, user documentation, palm rest |
| General Product Specifications | |
|---|---|
| Software Support (at release) | G HUB |
| OS/Platform Support (at release) | Windows and macOS |
| System Requirements | USB connectivity |
| Supported Hardware (at release) | PC, laptop |
| Required Accessory | USB cable (included in the package) |
| Product Information | |||||
|---|---|---|---|---|---|
| Component | Height | Width | Depth | Cable length | Weight |
| Keyboard | 38.29 mm | 363.2 mm | 143.01 mm | - | 1075 g |
| Palm rest | 22.25 mm | 363.2 mm | 90 mm | - | 535 g |
| USB cable | - | - | - | 1.8 m | - |
| Headset Specifications | |
|---|---|
| Corded or Wireless | Corded |
| Connection Type & Protocols | USB |
| USB Version / Protocol | Requires USB 2.0 or above to function |
| USB Port type (Built-in) | USB C |
| Indicator Lights (LED) | Yes |
| USB Report Rate | 1KHz to 8KHz |
| Backlighting | Yes |
| Lightsync | Yes |
| Display Type | OLED Display |
| Special Keys / Functions | Roller, Button to select, Game mode switch |
| Keys Count | 84 |
| Switch & Keys details | Gateron KS20 - Magnetic analog switches |
| Durability Keypress | 50 million |
| Actuation Distance | Customizable with G HUB from 0.05mm up to 4mm |
| Actuation Force | 30g ±10g |
| Total Travel Distance | 4mm ±0.2mm |
| N key Rollover / Anti Ghosting feature | N Key Rollover |
| Onboard Memory / Storage Support | 3 profiles which can be configured by user |
| Material Used | PCR ABS, PBT, Silicone |
| Other Features | Sound dampening, Analog switch customization, setting customization with on-board OLED display, TKL design, 8KHz report rate |
| Operational & Storage Environmental Requirements | Humidity - 95% RH Storage temperature - 0~40°C Operating temperature - 0~50°C |
| Maximum Power Consumption (Watts) | 2.5W |
| Standby Power Consumption (Watts) | 0.01W |
